Electric Skateboard Hub Motors Kit

$249.00$269.00

Rubber tires with hollow pour design to reduce vibrations, making your ride smoother and letting you go on rougher terrains.

We recommend you set the motors with our VESC based controller and 12S battery to enjoy the excellent torque and top speed (31mph) these hub motors can offer.

Just attach them to your deck like you would any other trucks and you are ready to go. Super Simple.

replaceable-tire
  • Replaceable Tire
  • Unremovable Tire
Clear
SKU: Hub-Motors Category: Tags: ,

Works with:

Electric Skateboard Hub Motors Kit-boundmotor.com (4) + boundmotor xcore vesc + Battery Enclosure/Case for DIY Electric Skateboard + ELECTRIC SKATEBOARD BATTERY PACK
Price for all three: $1,166.00

PROS:

  • Draining Water Groove Design
  • Reduce Vibration and Weight by Suspension Holes
  • Anti-Slippy Groove Design
  • Reduce the contact patch area with the road to add the usage life to over 1000 KM
  • Do not need consequently replace tires to save much time and do not need technology
  • Grooves in the tire surface to add anti-slippy function
  • Extremely Increasing the shock absorption features by material and holes
  • Reducing the kneels impact to tremendously add the riding comfortable feelings.

CONS:

  • Add the fraction with the road, loss some power and lead to less range miles.
  • No replaceable tire to add the wheels’stability
  • Torque is less than belt-driven PU wheel

360° VIEWER

SPEC

Motor TypeHub MotorSwappable Hub Motor
Motor TypeFOC
Sensor or SensorlessSensorSensor
Brush or BrushlessBrushlessBrushless
BrakingRegenerative brakingRegenerative braking
KV Value60 (KV / V)60 (KV / V)
Torque1.4 -2.3 NM1.4 -2.3 NM
EfficiencyMore than 90More than 90
Supported battery3S-12S3S-12S
Rated power500W600W
Maximum current50 A50 A
StatorLamination Japan steelLamination Japan steel
Pole pair1010
Rated Loading 1400 mN.m1400 mN.m
Running direction
CCW&CWCCW&CW
Wheels
Diameter105 mm105 mm
Width62 mm66.5 mm
Contact Patch4 mm
Tire Arc8 degree8 degree
Wheel MaterialSilicone RubberSilicone Rubber
Durometer70 A70 A

WHAT'S IN THE BOX?

  • Trucks * 2
  • 105mm Airless Wheels * 2
  • 105mm Hub Motors * 2
electric skateboard hub motor kit boundmotor.com_
Hub Motor

Replaceable Tire, Unremovable Tire

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
A
A.S.

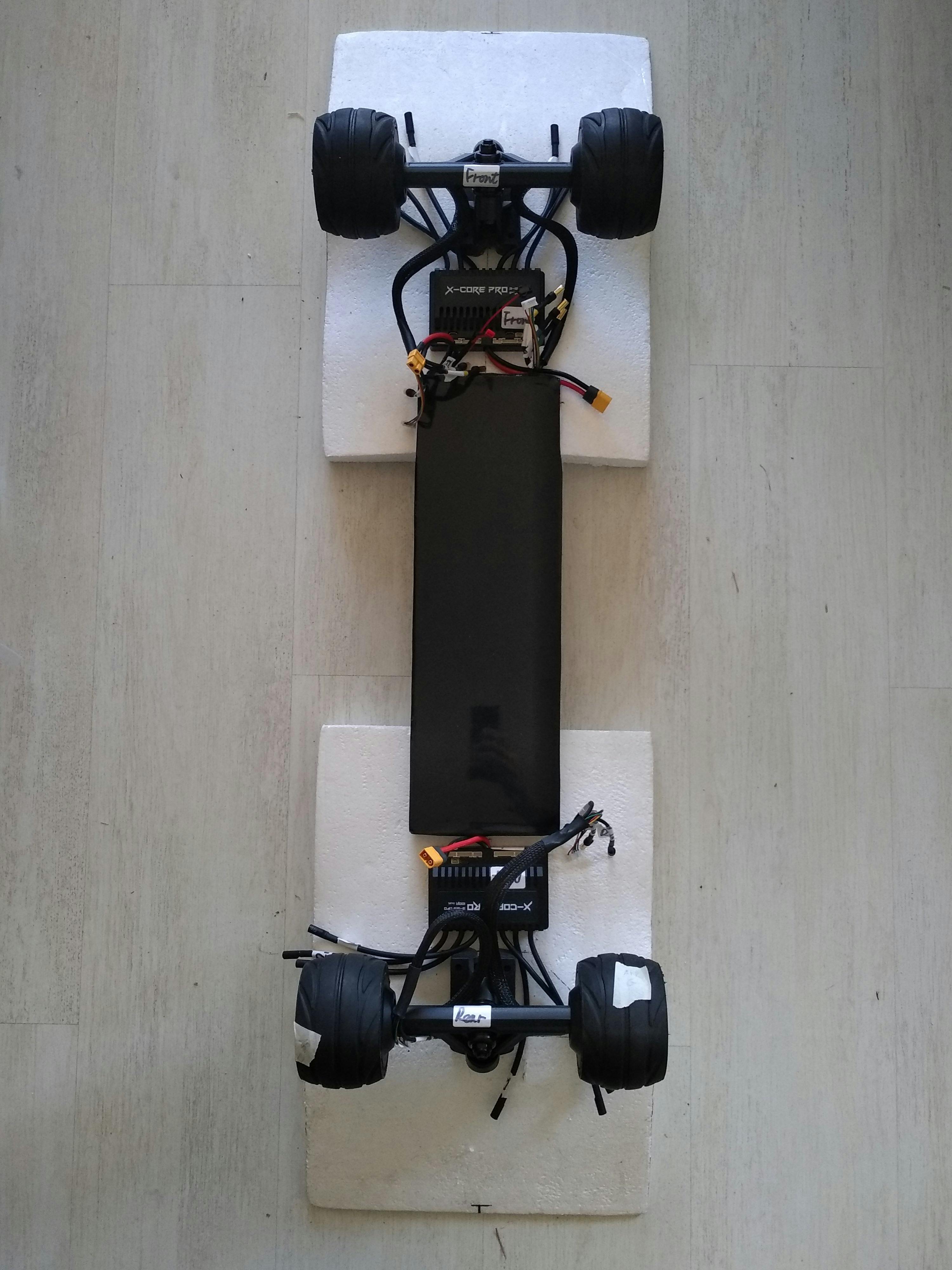

The perfect 4wd setup 👌

Perfect ! High torque, high speed, those hubs are perfect 👌 thanks you so much !

E
E.

Works really well. Shipping was a hassle with a few weeks delay, but it was all fun when I built it.

A
A.C.
Amazing!

This is exactly what I was looking for. I've built 2 skateboards with it, and it works perfectly. The wheels are not the smoothest (like, you can always find thicker wheels) but they are really comfortable, especially on asphalt they are perfect.

E
E.G.
great product

works very well, although its a bit slower and less strong than i thought

A
A.M.
Great communication

Haven’t ridden them yet but based on their communication these should be great. Had s problem with delivery and the kept me updated the whole time. Great customer service!

A
A.S.
Airless

Tyvm
