Motor Mounts V3

Regular price $69.00
Sale price $69.00 Regular price
  • Estimated Delivery:Apr 27 - May 01

  • Free Shipping On all orders over $300

Product description
  • Works with 12'' double kingpin trucks
  • Cutout design, easy to install the 6374/6384 motors without removing the motor mount.
  • Support 15T:76T Max

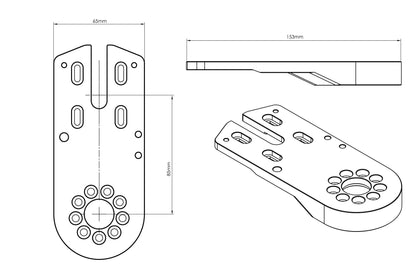

  • C2C distance: 85mm
Use our Belt Length Calculator to calculate the belt size you need.
  • Electric Skateboard Motor Mounts for Flash
  • Supports  63mm series motors.

For belt size, please check the table below:

Belt Size TableWith our motor mount V3.
Wheel Set Pulley Belt Size Bearing Bearing for pulley
105mm Airless Wheel 40T 5M310 608(22*8*7) 6900(22*10*6)
120mm Cloud Wheel 40T 5M310 608(22*8*7) 6900(22*10*6)
150mm Airless Wheels AT 60T 5M370 608(22*8*7) 6900(22*10*6)
150(Sakura Hub) 60T 5M370 608(22*8*7) 6900(22*10*6)
155(Sakura Hub) 60T 5M370 (26*8*8) (26*10*8)
150(Phantom Hub) 55T 5M355 608(22*8*7) 6900(22*10*6)
175mm(Sakura Hub) 66T 5M390 (26*8*8) (26*10*8)
