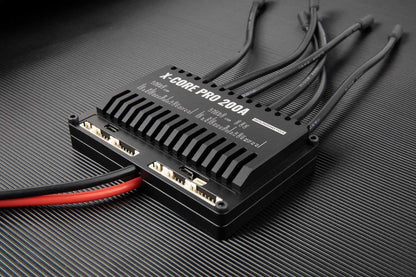

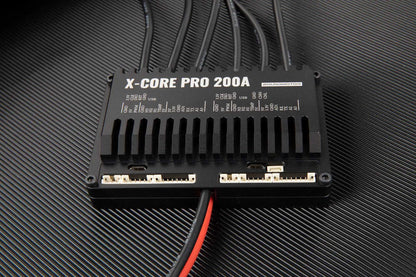

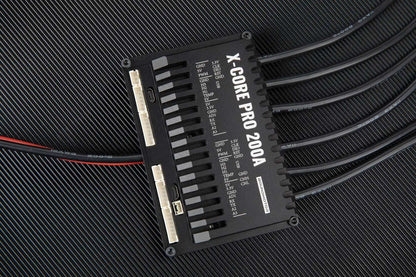

X Core Pro ESC

$299.00
$299.00
Compare Ask a question Share

  • Estimated Delivery:Nov 25 - Nov 29

  • Free Shipping On all orders over $300
Product description
X core Pro ESC is based upon the VESC® Open Source Project.
  • Voltage  : 8-60V(3-12s )
  • Current ：100A each
  • Hardware:  Based on VESC 6
  •  SIZE：106*71*23MM
  • Full CNC precision-machined housing

Programmable

Programmable speed controller, customize your own skateboard

Firmware

Firmware Version：5.3(The latest version)

vesc tool

vesc_tool_3.01 Software
VESC BLDC Open-Source Electric Skateboard ESC VESC is an open source, highly modifiable electronic speed controller ESC by Benjamin Vedder. It works fantastic for building your own DIY Electric Skateboard. The VESC allows you to use sensorless motors to achieve smooth start-up from a stop versus traditional RC ESC’s which have trouble starting from a complete stop. You can connect your VESC via Mini USB to your computer and modify VESC settings to fit your needs.

SPEC

ESC MODE X-CORE PRO
MOTOR CONNECTORS 5.5mm bullet connector
HALL SENSOR PH2.0MM JST
POWER SWITCH None
THIRD-PARTY REMOTE YES
BLUETOOTH YES
BATTERY PLUG XT60
VOLTAGE 8-50.4V(3-12s)
CURRENT 100A each
VESC HARDWARE V6.0
FIRMWARE V5.1
SIZE 106x71x23mm

WHAT'S IN THE BOX?

  • X-CORE PRO VESC * 1
  • Heat Sink Aluminum Case * 1
  • Accessory Bag
    • XT60H-F  *  1
    • 5.5mm bullets connectors * 6
    • PH2.0 JST wires 8-pin * 2
    • PH2.0 JST wires 6-pin * 2
    • PH2.0 JST wires 3-pin * 2
    • GH1.25 JST wires 3-pin * 1
    • Micro USB cable  * 1

Price does NOT include remote control and switch, sold separately.


Customer Reviews

Based on 18 reviews
72%
(13)
17%
(3)
6%
(1)
0%
(0)
6%
(1)
100.0
J
Jeremy Dixon
Under rated

I was running it with a 13s8p battery without any problems. Thank god it’s under rated. Im told its rated as 3s-12s. Thank you boundmotor. I love it.

a
andre versteeg
Nice

Did not overheat

J
Jeremy Dixon
X core pro Esc

With how hard it is to get your hands on an esc like storm core this is a good alternative. I’m running 2x 6380 motors with 10s10p battery on a mountain board. This esc works perfect for my needs. Integrated power switch and blue tooth would be nice but all and all not a big deal. I will be buying another for my next build.

User picture
J
Jake Wood
Great service

ESC, deck, box and remote all worked and everything worked together first try. Flawless ecosystem together. Very happy with the products.

J
Jay
working as intended

works great. at 250+ km and no problems so far.
wish there was a 12v socket for addt'l stuff but it's fine as it is.
anything more than this is not a necessity and this vesc is working as intended.
hope it lasts...

User picture
